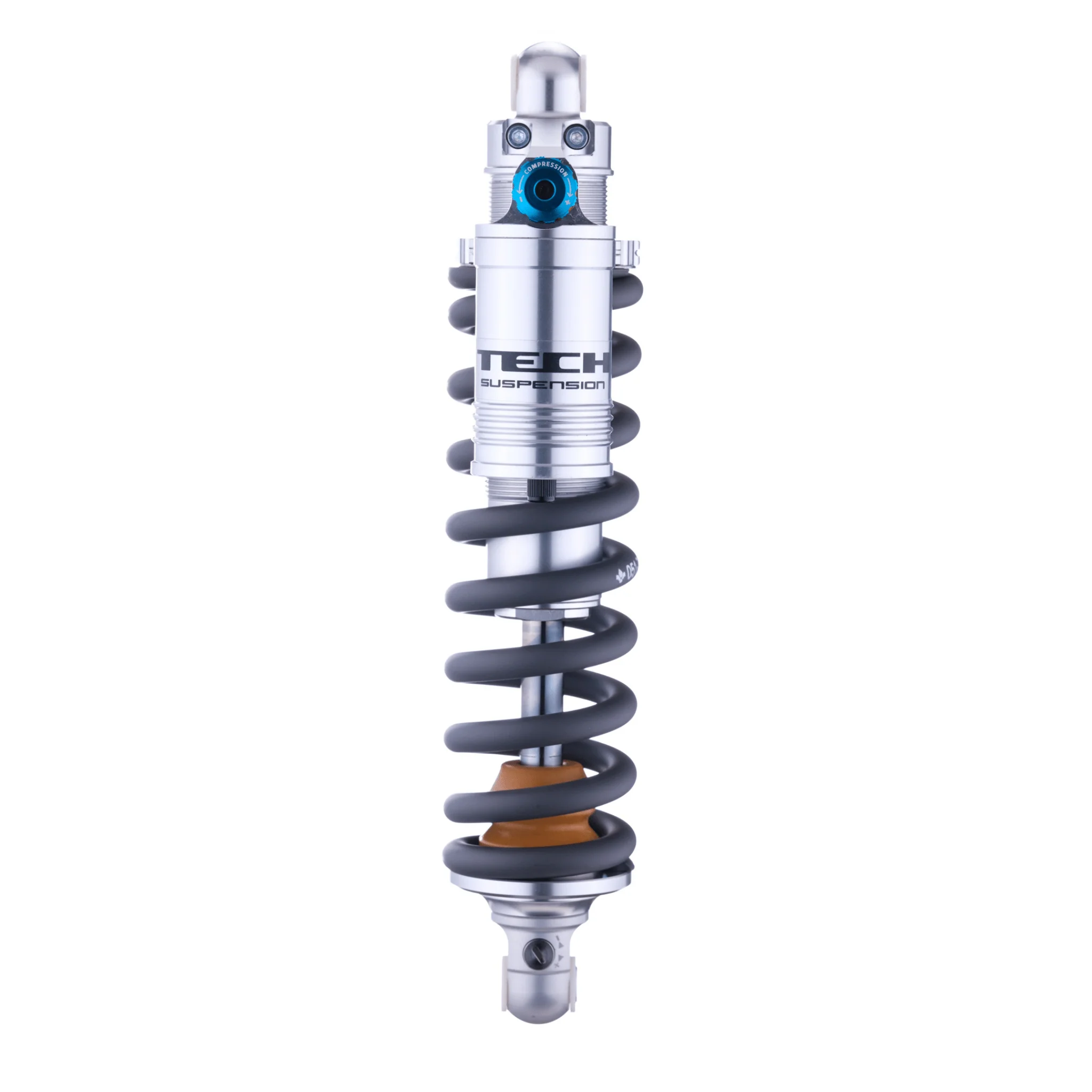

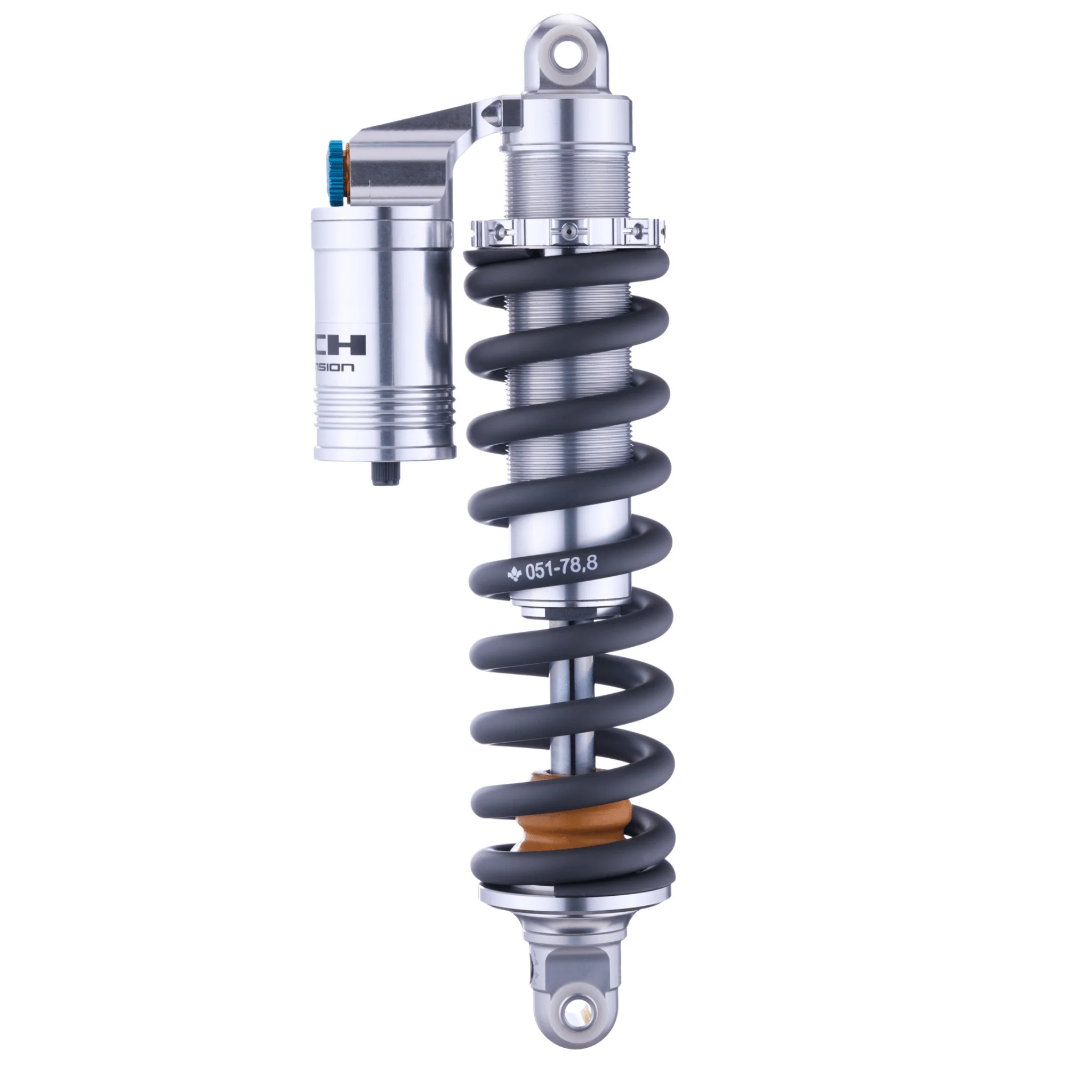

TECH ER30 288mm Rear Shock





---

A high-performance shock that delivers a balance of support and sensitivity at the rear end of the bike.

Designed and engineered specifically for lightweight E-motos.

---

COMPATIBILITY*

Talaria-Specific Fitment:

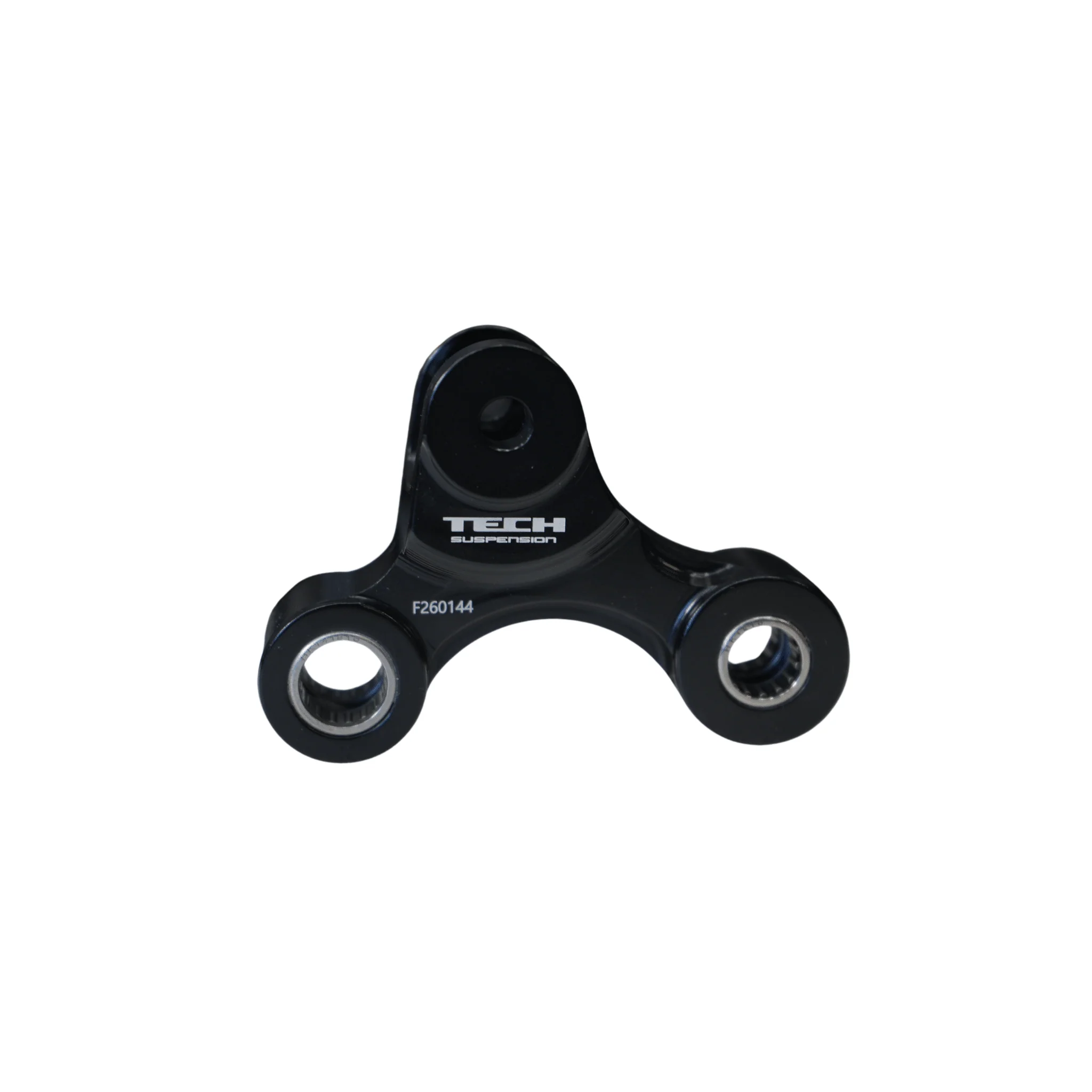

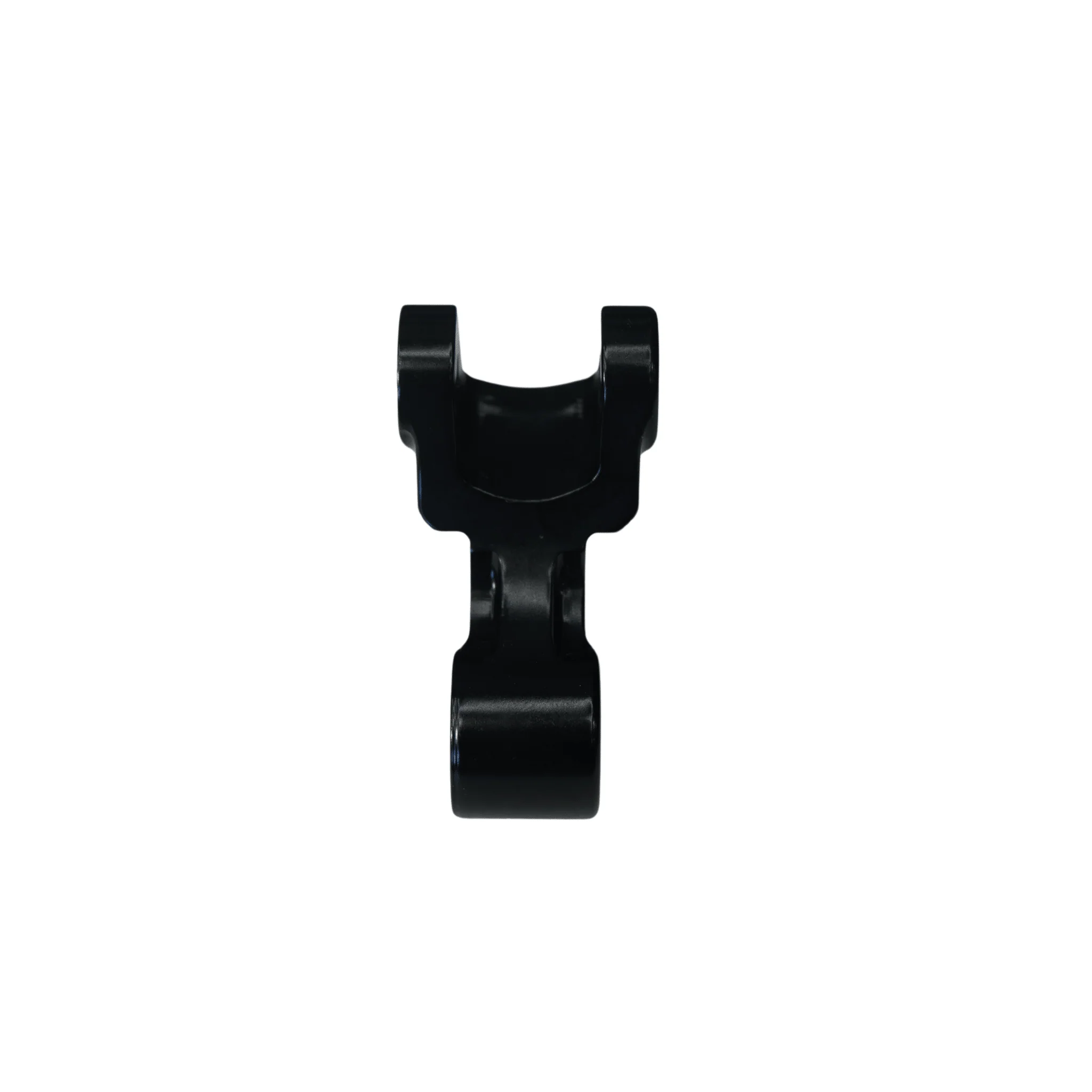

288 × 85 mm: Fits all Talaria Sting models (linkage mount) and Altis Sigma / Sigma MX (direct mount)

---

CUSTOM ADJUSTABILITY

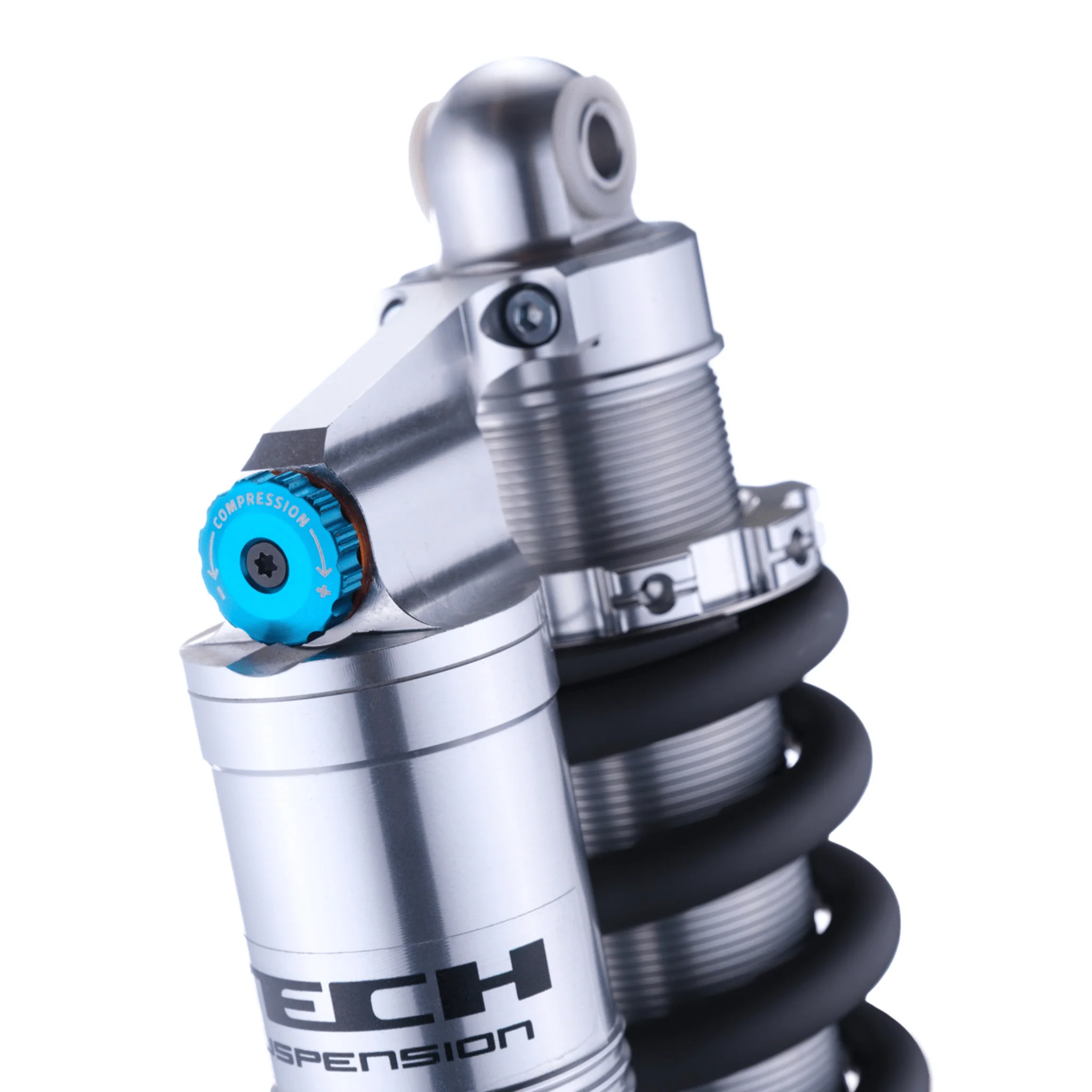

As well as pre-load and rebound adjustment, the ER30 E-Moto Shock is equipped with CTS (Compression Tuning System), a patented Formula and TECH Suspension innovation.

This user-friendly system enables fast, on-the-fly tuning of low- to mid-speed compression damping.

Spring rate options:

• 78.8 N/mm (standard) — suitable for average-weight riders

• 105.6 N/mm (optional) — recommended for heavier riders or aggressive terrain

---

PERFORMANCE FEATURES

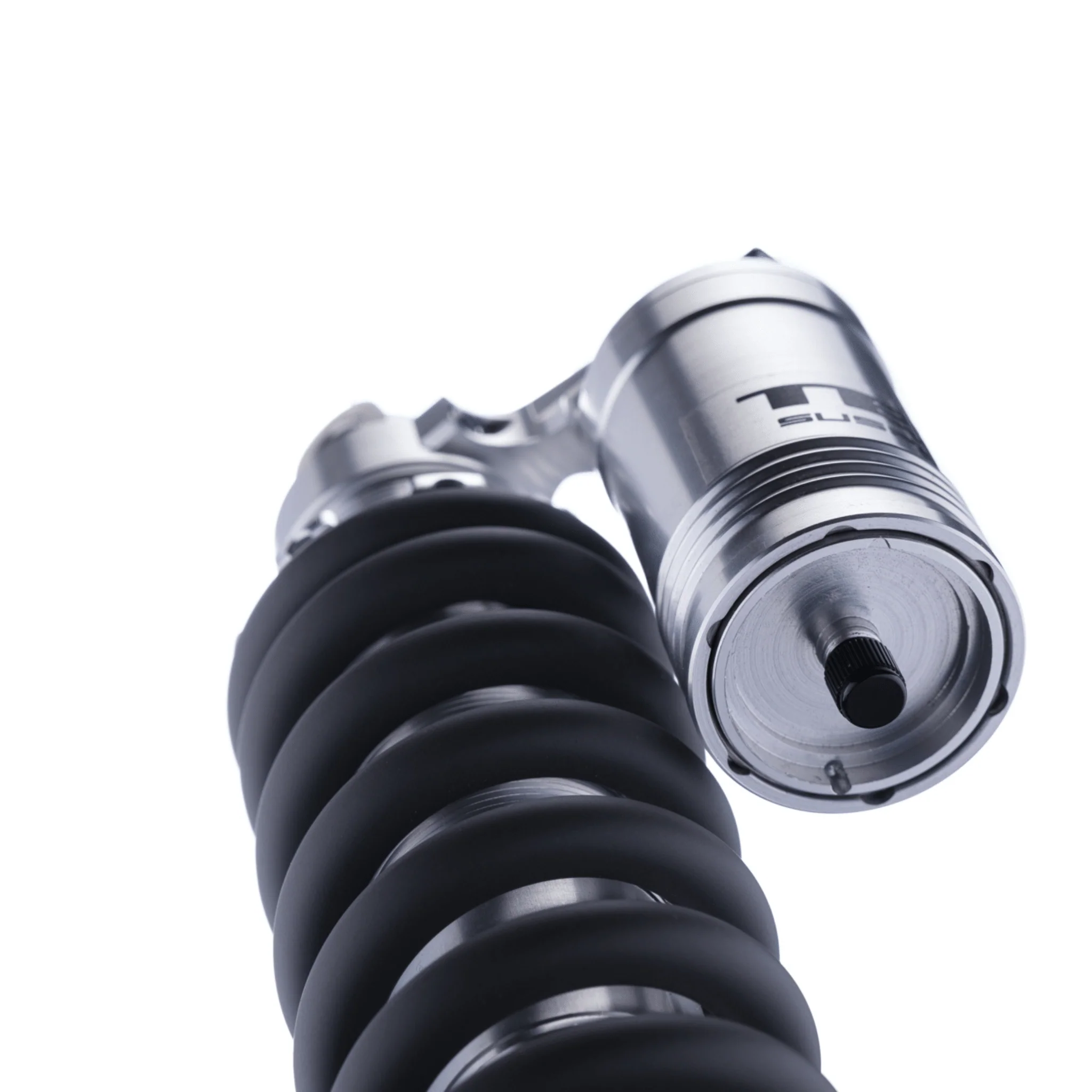

• Piggyback Reservoir: Increases oil volume for enhanced thermal stability under high load.

• Internal Floating Piston (IFP) with Double Seals: Prevents oil and gas mixing for consistent damping and long-term reliability.

• High-Profile MDU Bumper: Derived from TECH trials suspension, providing improved bottom-out resistance and progressive end-stroke feel.

• DU Bushings: Delivers secure, low-friction mounting with high durability for demanding off-road riding.
