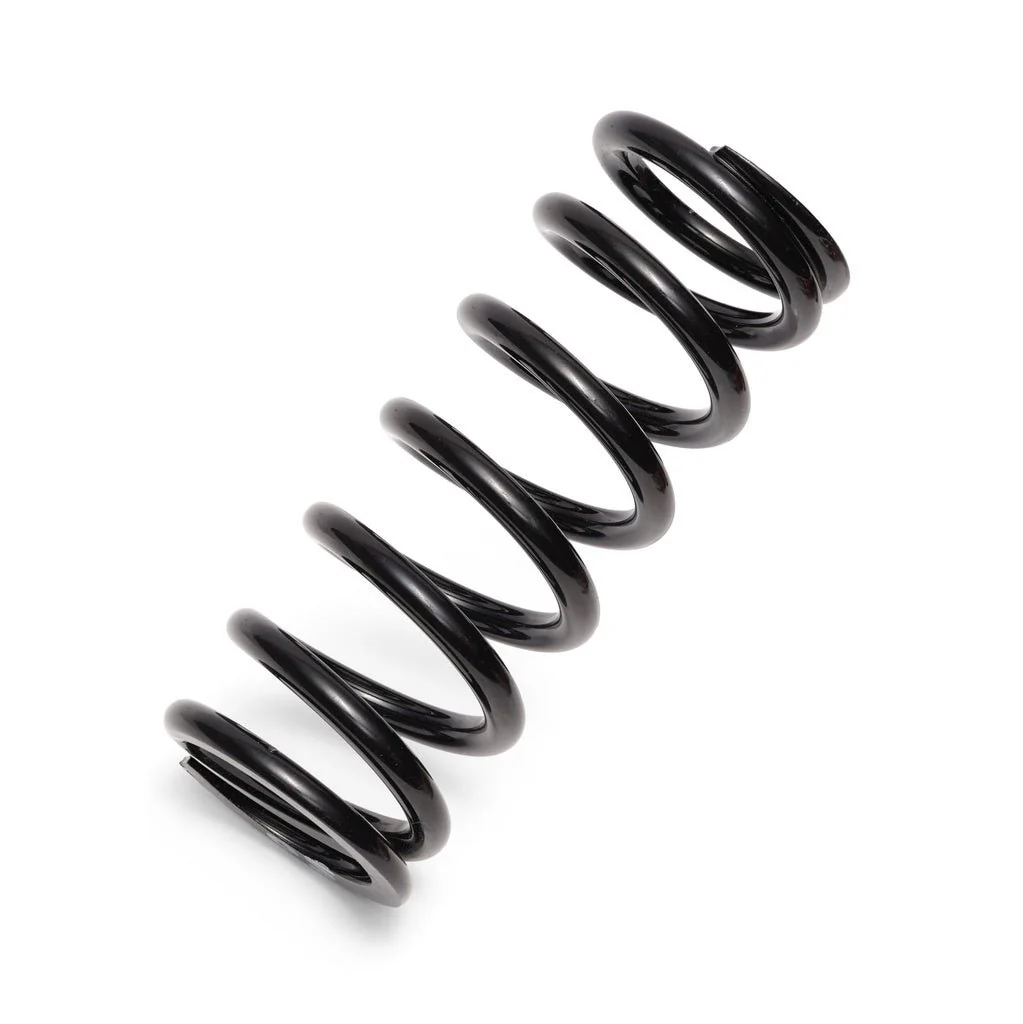

EBMX YSS Spring for EBMX Shock

If you have purchased an EBMX Shock and would like to go softer or harder, you can purchase a second spring to achieve your desired result.

EBMX Shock Spring Sizing Chart

This table is to be used for determining the correct spring rate for riders using the EBMX rear shock, linkage and triangle. There are two different configurations depending on if you are using the stock swing arm or the EBMX extended Swing arm.

When using the stock swing arm, EBMX shock, EBMX linkage and triangle the rear wheel travel is 205mm.

When using the EBMX extended swing arm with EBMX shock, EBMX linkage and triangle the rear wheel travel is 220mm.



Rider Weight	Swing Arm	Suggested Spring Weight (N/mm)
65-75kg	Stock	80
75-85kg	Stock	80
85-95kg	Stock	100
Over 95kg	Stock	100
65-75kg	EBMX	100
75-85kg	EBMX	100
Over 85kg	EBMX	115

Spring weight suggestions above are based on trail riding not extreme riding or jumping. If you plan to ride trails with large drops or do large jumps, please up size by 1 or 2 spring weights.
